Batch Paddy Dryer 24 Tons Circulating Paddy Dryer Machine Supplier
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Batch Type | Usage | Grain Drying |
|---|---|---|---|
| Condition | New | Body Dimension | 2900*2260*12700mm |
| Air Consumption | 10000-14000 M3/h | Power | 21.7kw |
| Highlight | circulating paddy dryer machine,Batch paddy dryer machine,24 Tons paddy dryer machine |
||
Product Description
Batch paddy dryer 24 Tons circulating paddy dryer machine supplier
What Can We Do With Presun Dryer?
- Low drying cost,together with biomass furnace,could save 70% cost compare with diesel and gas burner
- Excellent low temperature dryer design,reduce crackled rate and avoid yellow ones
- Fully modularized automatic production. Spare parts can be 100% replaceable. Our distributor teams network are the guarantee for after sales service.
Machine Features:
1. The batch circulation grain dryer adopts constant temperature drying, fully CNC operation, self flow grain discharge, effectively reducing crushing rate, frequency conversion speed regulation and other drying technologies. Suitable for drying crops such as corn, wheat, soybeans, sorghum, rapeseed, and grain seeds.
2. Elevator with low line speed and large backup bucket structure to reduce damage rate.
3. The galvanized sheet shaped pipes of the drying layer are arranged in a cross pattern and adopt a modular combination structure, which has a beautiful appearance and a long service life.
4. This machine has a wide range of applications, low drying costs, low application power, low heat consumption, and low drying capacity. The precipitation rate adopts low temperature, constant temperature, and full coverage drying. The clean heat source with hot air exchange is used for full coverage and no dead corners drying, ensuring grain quality, no secondary pollution, and stable performance. The production capacity is increased by about 30% compared to high temperature dryers in terms of precipitation rate and reducing damage rate.
5. The moisture content of the dried grains is consistent on the surface, making them the easiest to store for a long time. The moisture regain rate is reduced by more than 98% compared to high-temperature dryers, making it the best choice for grain drying equipment.
Technical parameters
|
Model Item |
5HPX-15 | 5HPX-20 | 5HPX-30 | 5HPX-35 | |||||
| Loading capacity(kg) | Paddy | 3,000~15,000 | 3,000~20,000 | 4,000~30,000 | 5,000~35,000 | ||||
| Corn | 3,800~18,500 | 3,800~24,600 | 5,000~36,400 | 6,000~42,000 | |||||
| Dimension L*W*H (mm) | 4321*2583*10000 | 4600*3263*10500 | 4600*3570*12700 | 5712*5000*12400 | |||||
| Net Weight | 3,000 | 4,200 | 5,500 | 8,000 | |||||
| Heat Source | Biomass Furnace/Gas Burner/Diesel Burner | ||||||||
| Power Consumption (kw) | 9.95 | 10.6 | 21.7 | 19.7 | |||||
| Input Voltage | 3 Phase 220V/380V,50Hz | ||||||||
| Husk Furnace | Type | Indirect | |||||||
| Ignition | Manual | ||||||||
| Function | Loading | 50~60(approx) | 50~60(approx) | 60~70(approx) | 60~70(approx) | ||||
| Discharge | 50~60(approx) | 50~60(approx) | 60~70(approx) | 60~70(approx) | |||||
| Drying Rate | 0.5-1.2 %/h | 0.5-1.2 %/h | 0.6-1.4 %/h | 0.5-1.2 %/h | |||||
| Standard Devices | Online moisture meter, Conveyor ,Discharge system, Buffer system, Elevator ,Suction fan, Temperature sensor | ||||||||
| Safety Devices | Overload device, Temperature control device, Control fuse, Leakage protection device, Air pressure switch | ||||||||

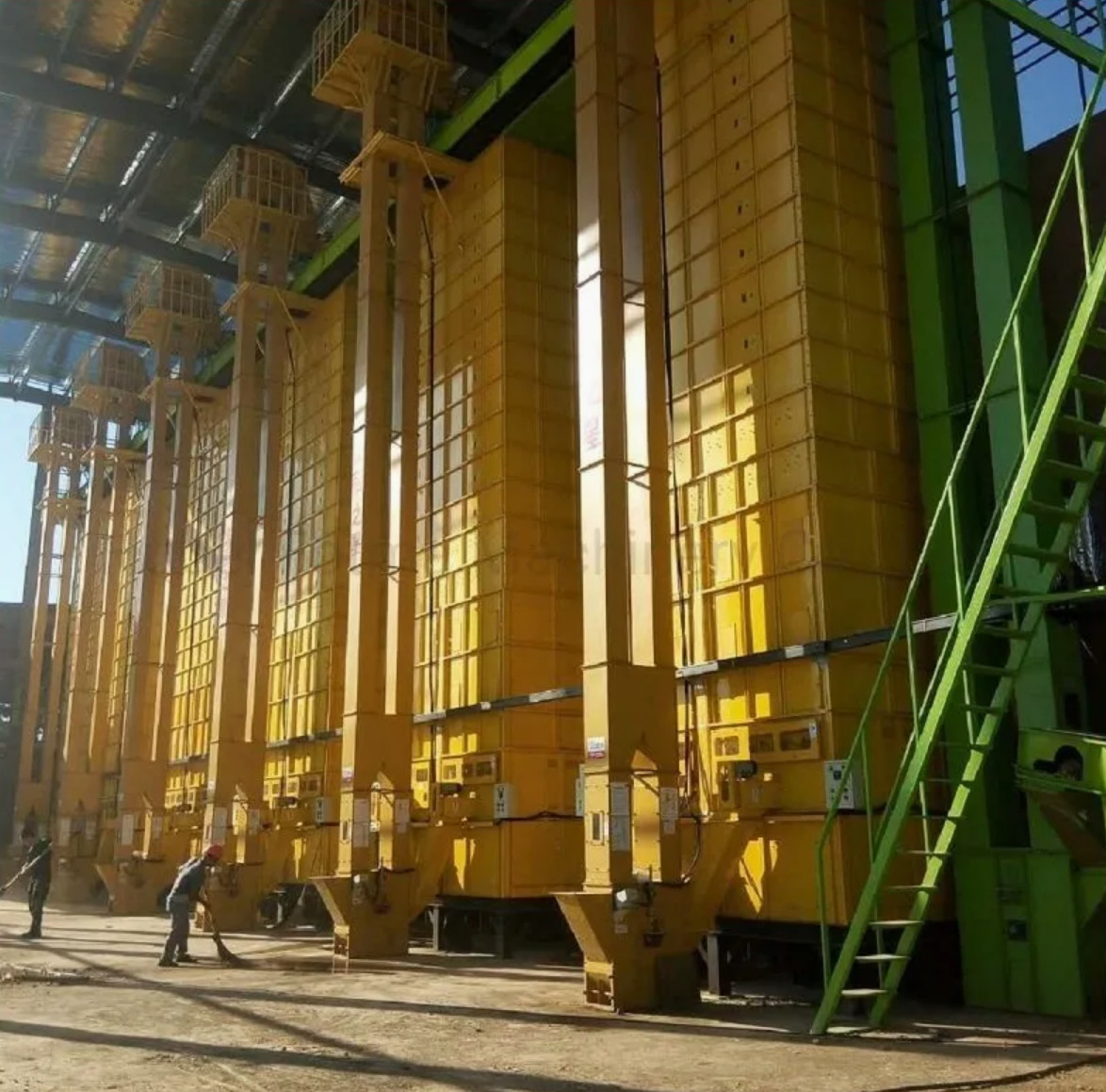

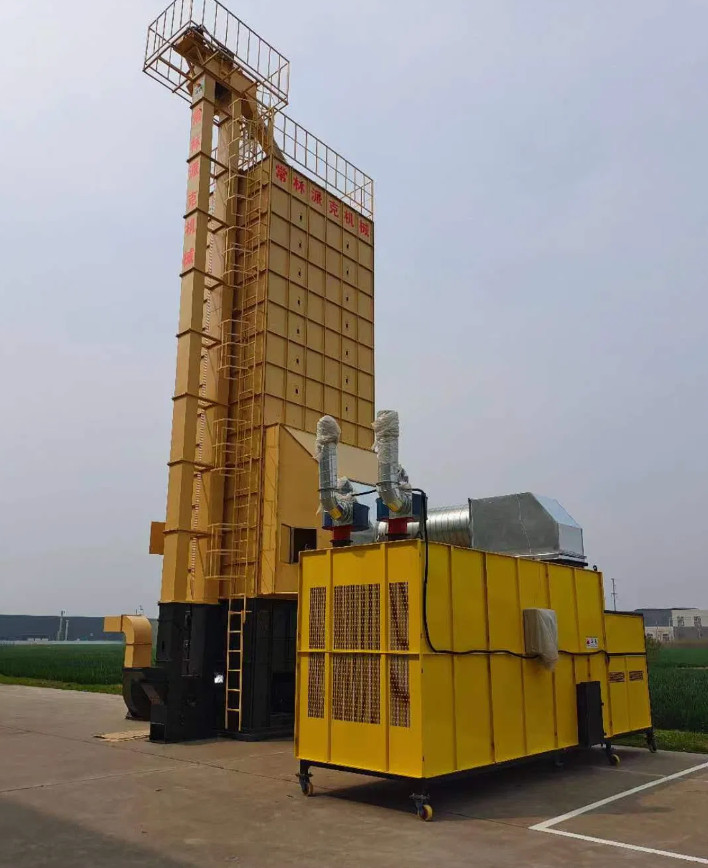

What's The Drying Plant Looks Like?
Details
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
Where Are We From
Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,
manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,
and about 1200 square meters as the office area in Hefei, Anhui province.
We have professional technical engineers and experts who have been working in grain drying field for
more than 10 years. With the development of our company, we successfully transferred into a listed
company in NEEQ in the April of 2017, our stock code:871356.
The company take full advantage of advanced technique, management, financing and service concept,
unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the
same time, we always research and develop products to meet different market and customer’s demand.
Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary
equipments are available,reaching a quicker grain input & output speed.
Our company always insist on”people foremost, service to farmers” as our management concept; “energy
conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.
We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
