Corn Dryer Machine Maize Dryer Machine Low Cost Corn Drying Machine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Batch Type | Usage | Grain Drying |
|---|---|---|---|
| Condition | New | Body Dimension | 3000*2260*10140mm |
| Overall Dimension | 3570*4374*10140mm | Power | 12.45kw |
| Warranty | 1 Year | Certification | ISO |
| Highlight | corn dryer machine,Maize dryer machine corn dryer machine,corn dryer equipment |
||
Product Description

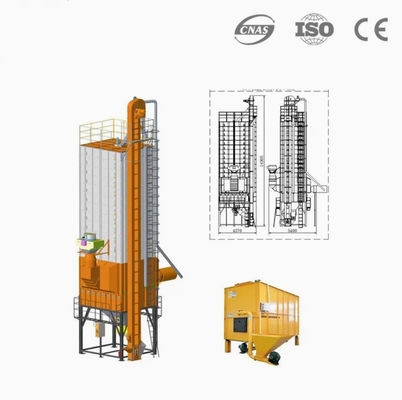

Mixed-Flow Tower Grain Dryer
Mixed-flow tower grain dryers make use of the clean hot air as heat medium to dry grain. The interior of dryers is composed of angular ventilation boxes, which is arranged in a staggered arrangement. The angular boxes are filled with grains flowing downward. The hot air enters the intake angular box through the grain layer, and passes through the grain layer from above to below. The exhaust gas is discharged through the exhaust angular boxes. The hot air and grain flow concurrently and countercurrently with gran flow, which is also called mix flow. When the hot air passes through the grain layer, it has heat and moister transfer with gains.
Hot air will transfer heat to the grain, raising the temperature of gain. The contained water evaporates into the air and becomes waste gas. The dried grains flow downward to the balancing section. After passing through the balancing section, the grains reach the balance point of temperature and moisture interiorly and exteriorly, achieving the uniform moisture reduction. Then the grains enter the cooling section and get cooled to storage temperature. Eventually the dried materials will be discharged through outlet.
Specifications:
| Model | PGD-15 | PGD-20 | PGD-30 | |
| Dimension |
2538*4321*10000 |
2600*4402*11700 |
4812*5113*12700 |
|
| Capacity (kg) |
Paddy | 2500-15000 | 3000-20000 | 4000-30000 |
| Corn | 2880-18900 | 3680-25000 | 4880-36400 | |
| Wheat | 2450-16200 | 3235-22800 | 4260-33400 | |
| Net Weight(kg) | 3500 | 4200 | 6000 | |
| Burner | Model | PBF-30 type biomass stove | PBF-30 type biomass stove | PBF-45 type biomass stove |
| Fuel | Biomass pellet rice husk dual-purpose furnace(independent research and development)/natural gas/liquefied petroleum gas | |||
TO INSTALL PRESUN GRAIN DRYER MACHINE FOR YOUR MILL?
Definitely Yes,Cause...
1)Full time processing ability,get rid of bad weathers' interruption,like raining,storm,snowing and etc
2)Massive Drying Capacity,one batch could reach 20 tons capacity,if connected with 5 sets,100 tons per day is available
3)Low-cost running consumption,Biomass material/coal/gas/diesel are all available
4)Flexible installation method,one furnace could connect 3 to 4 dryers,to save the land space
5)High processing efficiency,mo blind drying section,all the material would keep to the same mositure rate,make them the same quality
6)Slow and careful auger,tiny broken and waste material during the circulation
7)Best return on Investment ratio,running one to two month,could get back the investment on the machine
What We Can Offer
1)Whole turnkey project solution
included Pre-cleaning machine,elevator,input&outlet pipe,furnace and dryer
2)Plant designition service
supply you all the possibly area required,the instllation diagram for consideration
3)Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning the machine
4)Full time online service
24 hours online technique service,ensure to tackle the problem immediately
5)Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
Drying Unit Diagram
Applicantion:
COMPANY PROFILE
PRESUN AGRO MACHINERY is a professional manufacturer with development,
manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,
and about 1200 square meters as the office area in Hefei, Anhui province.
We have professional technical engineers and experts who have been working in grain drying field for
more than 10 years. With the development of our company, we successfully transferred into a listed
company in NEEQ in the April of 2017, our stock code:871356.
The company take full advantage of advanced technique, management, financing and service concept,
unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the
same time, we always research and develop products to meet different market and customer’s demand.
Now our main products are PGD series grain dryer and PBF series burners,also the drying auxiliary
equipments are available,reaching a quicker grain input & output speed.
Our company always insist on”people foremost, service to farmers” as our management concept; “energy
conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.
We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
