120 TPD Batch Type Grain Paddy Dryer Machine For Rice Mill
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Batch Type | Usage | Grain Drying |
|---|---|---|---|
| Condition | New | Body Dimension | 2900*2260*12700mm |
| Air Consumption | 10000-14000 M3/h | Power | 19.7kw |
| Highlight | 120 TPD Paddy Dryer Machine,grain Paddy Dryer Machine,grain dryer machine for rice mill |
||
Product Description
120 TPD paddy rice dryer project 120 tons paddy drying machine supplier
Presun Dryer Plant Features
1.Apply for paddy,wheat,corn and soybean.
2.Full automatic moisture detector for preventing over drying.
3.Temperature controller could make all dryer working at same temperature
4.Working fully atuomatic from loading,cleaning,drying and outlet

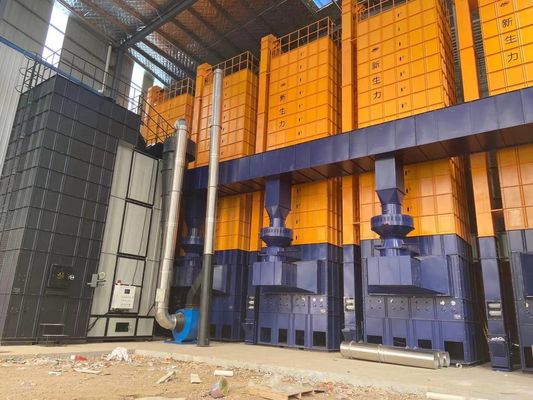

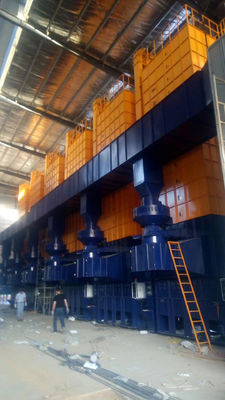

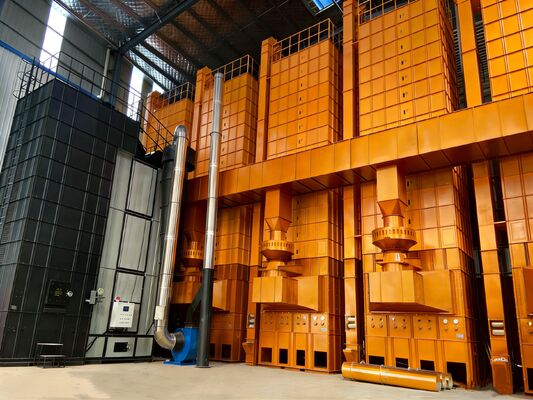

Rice Husk Furnace Drying Complex
One 200 Furnace With 10 Sets 30 Tons Dryer
| Husk Feeder |
Husk Tank |
| Rice Husk Furnace SB-200 |
Main Control Box |
| Auto Ash Discharger |
Auxiliary Air Blower |
| Cyclone |
Hot Air Duct |
| Dumping Pit |
Bucket Elevator |
| Precleaner |
Bucket Elevator |
| Loading Chain Conveyor |
32 ton husk type grain dryer |
| Micro Air Adjuster |
Hot Air Damper |
| Unloading Chain Conveyor |
For 120 Tons project,need one Husk furnace and 4 sets 30 tons dryerplant
Technical Parameters
30 Tons Dryer
| Model | 5HPX-30 |
| Loading capacity | 30 Tons |
| Dimension | 2900*2260*12700mm |
| Drying Type | Low Temperature circulating Type |
| Power For Fan | 5.5*2KW |
| Drying Rate | 0.6~1.4%Per Hour |
| Heat Consumption | <30,000 KCalorie |
| Weight | 6,000KG |
| Standard Device | Moisture Meter,Conveyor,Fan |
2 Million Kcal Husk Furnace
| Model | 5LXF-100 | 5LXF-150 | 5LXF-200 |
| Burning Method | Cyclonic Furnace | ||
| Fuel | Husk | ||
| Heating Mode | Indirect | ||
| Heat Exchange Square | 88㎡ | 138㎡ | 188㎡ |
| Heat Efficiency | ≥80 % | ≥80 % | ≥80 % |
| Husk Consumption | 100~265 kg/h | 220~550 kg/h | 260~650 kg/h |
| Ash Discharge kg/h | 20-50 kg/h | 40-95 kg/h | 45-110 kg/h |
| Dimension (mm) | 3200*4500*2850 | 5900*6430*8520 | 6790*6560*9250 |
| Power (kw) | 9.05 | 17.55 | 21.05 |
| Weight (kg) | 12000 | 25000 | 30000 |
| Safety Devices | Abnormal combustion sensor, Flame sensor, Automatic abnormal safe guard, Thermal relay, Rotation sensor, Control fuse | ||
| Supply Dryer Quantities | 5HPX-15 5 sets | 5HPX-15 7 sets | 5HPX-15 9 sets |
| 5HPX-20 4 sets | 5HPX-20 7 sets | 5HPX-20 9 sets | |
| 5HPX-30 2 sets | 5HPX-30 5 sets | 5HPX-30 6 sets | |
Application
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
Company Profile
Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,
manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,
and about 1200 square meters as the office area in Hefei, Anhui province.
We have professional technical engineers and experts who have been working in grain drying field for
more than 10 years. With the development of our company, we successfully transferred into a listed
company in NEEQ in the April of 2017, our stock code:871356.
The company take full advantage of advanced technique, management, financing and service concept,
unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the
same time, we always research and develop products to meet different market and customer’s demand.
Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary
equipments are available,reaching a quicker grain input & output speed.
Our company always insist on”people foremost, service to farmers” as our management concept; “energy
conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.
We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
