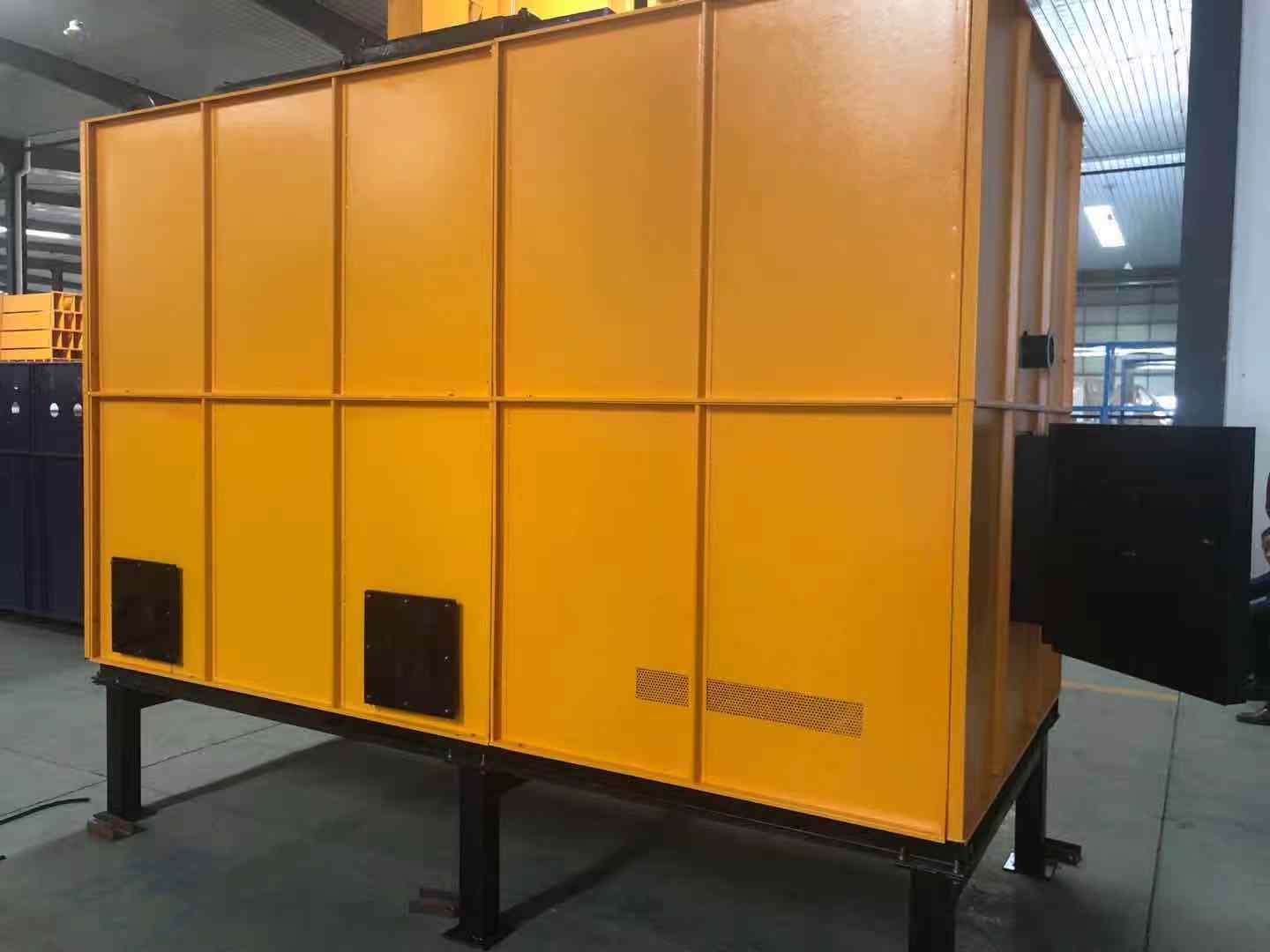

360Kg/H Biomass 900000 Kcalorie Firewood Coal Burning Furnace
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Fuel | Firewood |
|---|---|---|---|
| Feeding Mode | Manual | Heating Mode | Indirect |
| Ignition Mode | Manual | Product Name | Rice Husk Burner |
| Packing | Nuke Packing | Weight | 4000kg |
| Guaranty | 1 Year | Main Material | Brick&cement |
| Highlight | 900000 kcalorie Firewood Burning Furnace,360Kg/H Coal Burning Furnace,360Kg/h Firewood coal furnace |
||
Product Description
900,000 kcalorie firewood burner wood stove indirect wood burner
Advantages
Biomass furnace is developed in China mainland for Chinese high price of oil. It is popular in southeast of Aisa countries which is poor for oil or their oil price is high. Husk, wooden sawdust, coal and all kinds of granual fuel material!
The fuel can be feeded automatically by screw conveyor, the heat temperature can be adjusted automatically! No smell in the drying tower for it is not directly heating type like oil burner.
Technical parameters
| Model | XSL-45 | XSL-60 | XSL-90 |
| Heating Mode | Indirect | ||
| Ignition Mode | Manual | ||
| Feeding Mode | Manual/Automatic | ||
| Heating Temperature | ≤ 100℃ | ||
| Heating Supply | 450,000 Kcalorie | 600,000 Kcalorie | 900,000 Kcalorie |
| Biomass Fuel | Husk/Coal/Wood & Other Biomass Material | ||
| Husk Consumption | 60~180 kg/hr | 80~240 kg/hr | 120~360 kg/hr |
| Input Voltage | 3 Phase 220V/380V,50Hz | ||
| Power (kw) | 4.5 | 5.2 | 6.2 |
| Control Method | Automatic Control | ||
| Dimensions(mm) | 3500*1500*2200 | 3800*1500*2520 | 5000*1800*2520 |
| Safety Devices | Low temperature automatic alarm, Temperature automatic control function, Feeding system, Ash exhaust system, Air Damper | ||
| Supply Dryer Quantities | 5HPX-15 3 sets | 5HPX-15 4sets | 5HPX-15 6 sets |
| 5HPX-20 2 sets | 5HPX-20 3 sets | 5HPX-20 4 sets | |
| 5HPX-30 1 set | 5HPX-30 2 sets |
5HPX-30 3 sets |
|
The smallest furnace could supply 300,000 Kcal per hours,so it could drive at least one set 20 tons batch dryer
Equipment contained if choose husk as the fuel
| Items | Descriptions |
| Auto Feeder system | One blower with one husk bin |
| Ash cleaner | One rotoary stick with one blower |
| cyclone | 60mm diameters cyclone |
| Control system | PLC type control panel |
Applications:
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
Who Are We
PRESUN is a factory dedicated to Grain Processing Machinery,about us,few items you might need to know:
1)We are located at Hefei City,Anhui Prov,China
2)Have more than 11 years experience at grain drying industry
3)10,000 square meters workshop
4)5,000 sets dryer already installed worldwide
5)600-1,000 sets dryer sold every year
6)ISO 9001 certificated company
7)Listed company since 2017
