Indirect heating raw rice dryer automatic SS rice dryer 60 tons capacity batch dryer
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Batch Type | Usage | Grain Drying |
|---|---|---|---|
| Condition | New | Body Dimension | 2900*2260*12700mm |
| Air Consumption | 10000-14000 M3/h | Power | 21.7kw |
Product Description

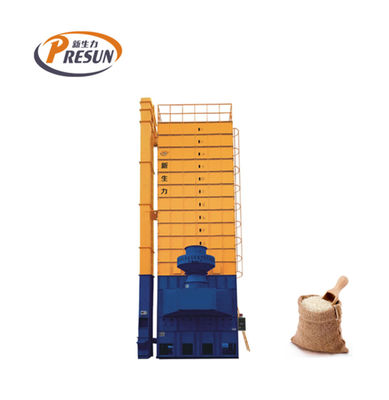

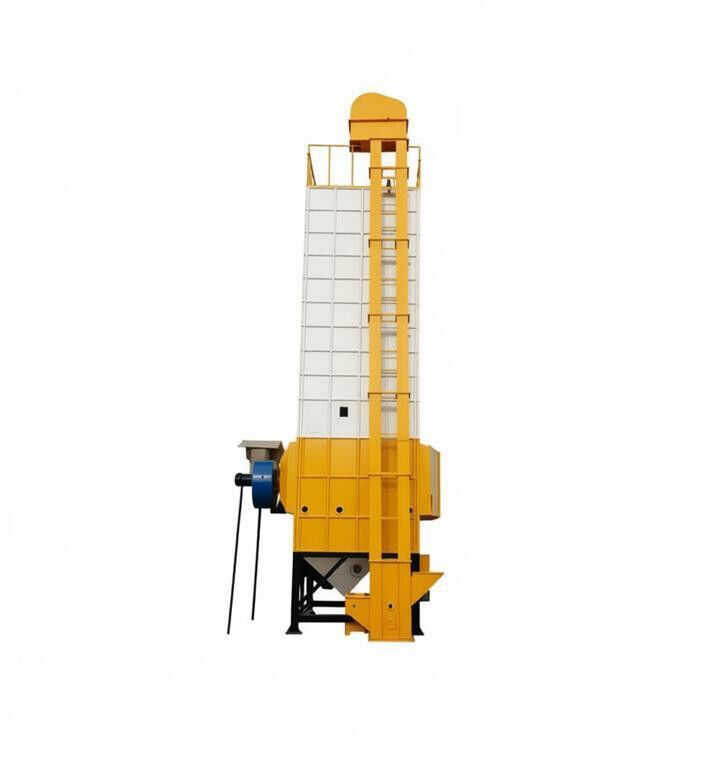

Indirect heating raw rice dryer automatic SS rice dryer 60 tons capacity batch dryer
Why You Need Grain Dryer Machine?
- Save grains on cloudy and rainy days,prevent them from mold and sprout
- Save space and time for drying grains,it could running at 24 hours every day
- Save labor cost,dryer could running automatically under one man’s operation
- Save grain lost and contaminated rate,much better to drying by the sunshine
- Save grains quality,bulk of fresh grains could be packed and harvest on time
What Can We Do With Presun Dryer?
- Low drying cost,together with biomass furnace,could save 70% cost compare with diesel and gas burner
- Excellent low temperature dryer design,reduce crackled rate and avoid yellow ones
- Fully modularized automatic production. Spare parts can be 100% replaceable. Our distributor teams network are the guarantee for after sales service.
How Did Presun Dryer Works
- Our dryer need one fuel burner to supply hot air goes into the dryer to remove the moisture on the grains's surface
- After short time drying,grains would be circulating through the elevator,we call it "tempering zoon"to let the moisture inside the kernal to escape
- When the moisture inside the kernal already escaped to the surface,it would drying again,then continue the process,temerping again
- The drying time compare to tempering time would be around 1:5,so there's no additional damage or crack for the raw grains
- Have online moisture meter to test and record the present moisture,would automatically shut down when reach the target
- Lots of heating resources could be choosen,such as diesel,gas,coal,biomass material,each options are determind by clients request
Technical parameters
|
Model Item |
5HPX-15 | 5HPX-20 | 5HPX-30 | 5HPX-35 | |||||
| Loading capacity(kg) | Paddy | 3,000~15,000 | 3,000~20,000 | 4,000~30,000 | 5,000~35,000 | ||||
| Corn | 3,800~18,500 | 3,800~24,600 | 5,000~36,400 | 6,000~42,000 | |||||
| Dimension L*W*H (mm) | 4321*2583*10000 | 4600*3263*10500 | 4600*3570*12700 | 5712*5000*12400 | |||||
| Net Weight | 3,000 | 4,200 | 5,500 | 8,000 | |||||
| Heat Source | Biomass Furnace/Gas Burner/Diesel Burner | ||||||||
| Power Consumption (kw) | 9.95 | 10.6 | 21.7 | 19.7 | |||||
| Input Voltage | 3 Phase 220V/380V,50Hz | ||||||||
| Husk Furnace | Type | Indirect | |||||||
| Ignition | Manual | ||||||||
| Function | Loading | 50~60(approx) | 50~60(approx) | 60~70(approx) | 60~70(approx) | ||||
| Discharge | 50~60(approx) | 50~60(approx) | 60~70(approx) | 60~70(approx) | |||||
| Drying Rate | 0.5-1.2 %/h | 0.5-1.2 %/h | 0.6-1.4 %/h | 0.5-1.2 %/h | |||||
| Standard Devices | Online moisture meter, Conveyor ,Discharge system, Buffer system, Elevator ,Suction fan, Temperature sensor | ||||||||
| Safety Devices | Overload device, Temperature control device, Control fuse, Leakage protection device, Air pressure switch | ||||||||

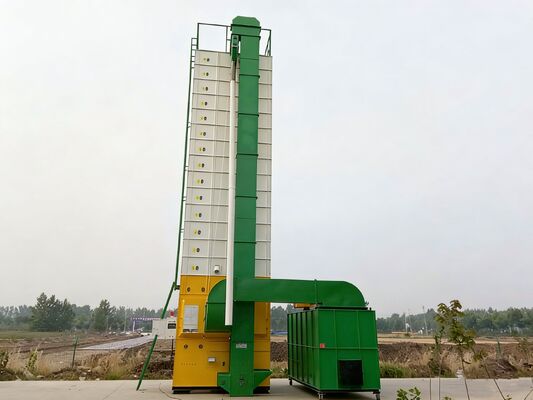

What's The Drying Plant Looks Like?
Details
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
Where Are We From
Anhui Xingshengli Agricultural Machinery Co.,Ltd is a professional manufacturer with development,
manufacturing,sales and services. Now totally covering an area of 11000 square meters as the factory,
and about 1200 square meters as the office area in Hefei, Anhui province.
We have professional technical engineers and experts who have been working in grain drying field for
more than 10 years. With the development of our company, we successfully transferred into a listed
company in NEEQ in the April of 2017, our stock code:871356.
The company take full advantage of advanced technique, management, financing and service concept,
unceasingly exploit and innovate, to supply high performance, quality and efficient grain dryers. At the
same time, we always research and develop products to meet different market and customer’s demand.
Now our main products are 5HPX series grain dryer and XSL series burners,also the drying auxiliary
equipments are available,reaching a quicker grain input & output speed.
Our company always insist on”people foremost, service to farmers” as our management concept; “energy
conservation and environment protection” as our goals. Planning to bring our brand “PRESUN” to the world.
We wish to cooperate with all old and new friends, let us create a brilliant future hand in hand.
