Low Risk of Fire Leakage Indirect Rice Husk Furnace for Grain Drying
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Fuel | Rice Husk |
|---|---|---|---|
| Color | Black | Ignition Mode | Automatic |
| Heat | 1,500,000 Kcal | Weight | 26,000 Kg |
| Dimensions | 6790*6560*9250 Mm | Feeding Mode | Manual |
| Heating Mode | Indirect | Temperature Control | Automatic |
| Total Power | 21kw | Hot Ar Temperature | Maximum To 180degree |
| Fuel Type | Biomass | Warranty | 1 Year |
Product Description
How Did Cyclonic Furnace Works?
1)Auto Feeder would blowing the husk into the combustion room
2)Husk would be burning inside the combustion room
3)Extra Blower would keep supplying fresh air into the combustion room, meanwhile spreading pipeline would help the husk flying and circulating inside which makes it burning completely
4)Hot air from the combustion room would passing through the heat exchanger, which makes heat exchanger be heated
5)Fresh air coming outside passing through the heat exchanger and be heated goes into the ducting which lead to dryer machine
6)Auto Ash Sweeper would cleaning the ash and transfer the ash to the ash tank through the elevator
Features Of Cyclonic Furnace
1)Excellent combustion room design with top quality structural steel, makes the furnace stable and durable
2)Heat exchanger size up to Φ60*6000mm,within rock wool protection, improving heat exchange efficiency
3)Fully-automatic temperature control, husk feeding stable makes outlet hot air temperature steady
4)Indirect hot air drying system, low risk of fire leakage and no heavy smells goes into dryer
5)Long-term professional usage as drying center, and fool-proof design. Easy operation, one person can handle drying thousand tons of grains per day.
Main Technical Data Of PCF-150 Cyclonic Furnace
| Model No. | PCF-150 | Fuel Option | Paddy Husk |
| Heat Supply | 1,500,000 Kcal Per Hour | Husk Consumption | 220-550kg/h |
| Power Consumption | 17 KW | Dimensions | 5900*6430*8520mm |
| Weight | 26000 kg | Operation Method | Automatic |
What Did Mega Paddy Drying Center Looks Like?
①Iantake Pits ②1#Elevator ③Pre Cleaner ④2#Elevator ⑤Loading Conveyor ⑥Presun Dryer ⑦Cyclonic Furnace

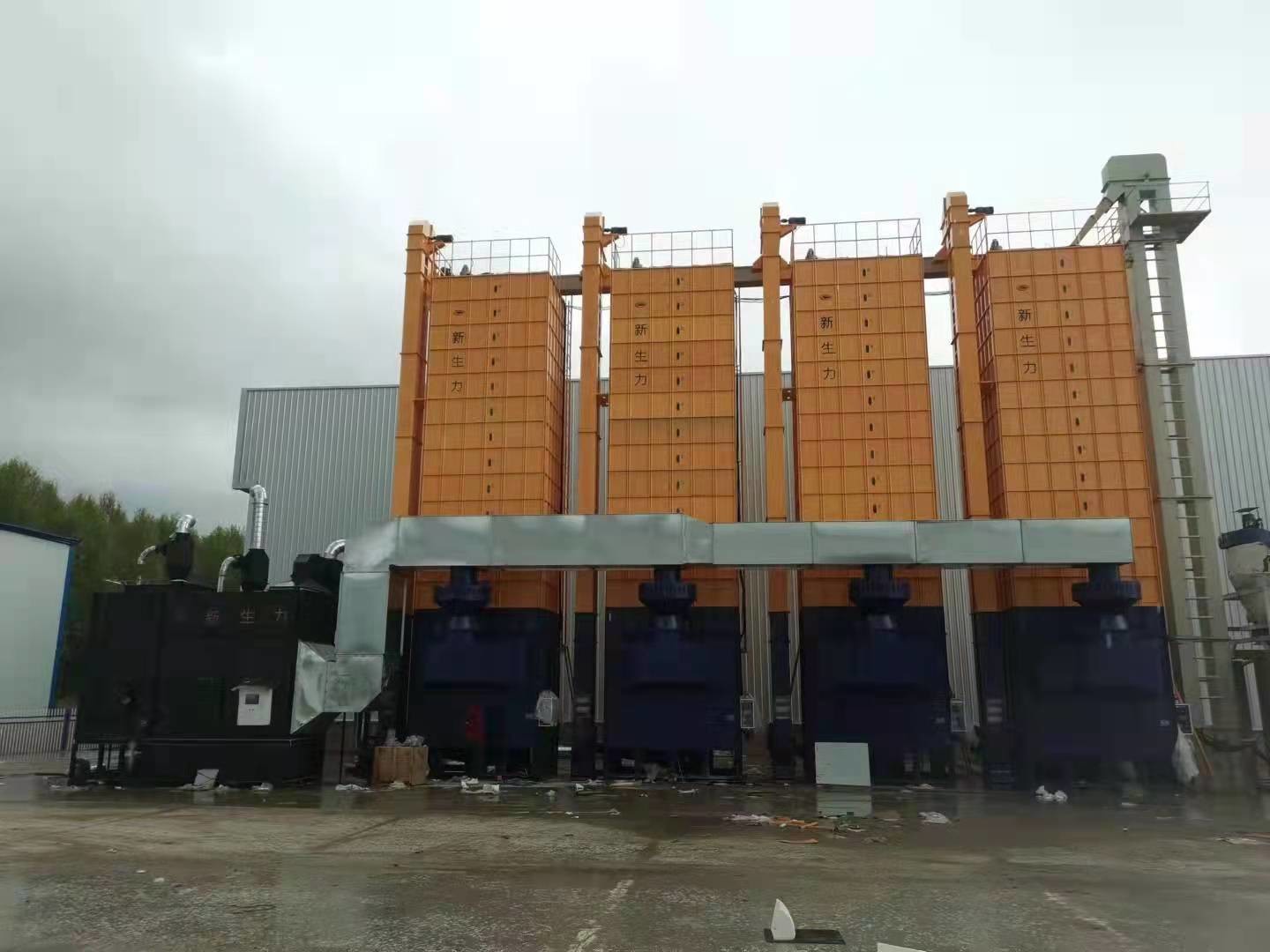

This is standard 180 tons per batch paddy dryer project, it consist of 1 set PCF-200 Cyclonic Furnace and 6 sets PGD-30 Grain Dryer Machine
Fresh wet paddy loading from intake pits, after cleaned by pre cleaner, goes into dryer through conveyor, then finally loaded to dryer
Cyclonic furnace would keep working to supply sufficient hot air to the dryer units,so paddy moisture could be dried timely, after drying, dried paddy would be unloaded through another belt conveyor
Presun Mega Paddy Dryer Plant Animation With Cyclonic Furnace
FAQ
Q1: What's the smallest cyclonic furnace model we have?
A: Our smallest model is PCF-120, which means 1,200,000 Kcal per hour,can used to 120 TPD dryer plant
Q2: How many container required to ship the cyclonic furnace?
For standard cyclonic furnace, would required 2 units 40' container(If no ductings required),together with ductings,then need 3 units 40' container
Q2: Did presun cyclonic furnace could also used for other brand dryer?
Possible, we would give individual control box for the cyclonic furnace which makes it could also able to drive other brand grain dryer machine as well
