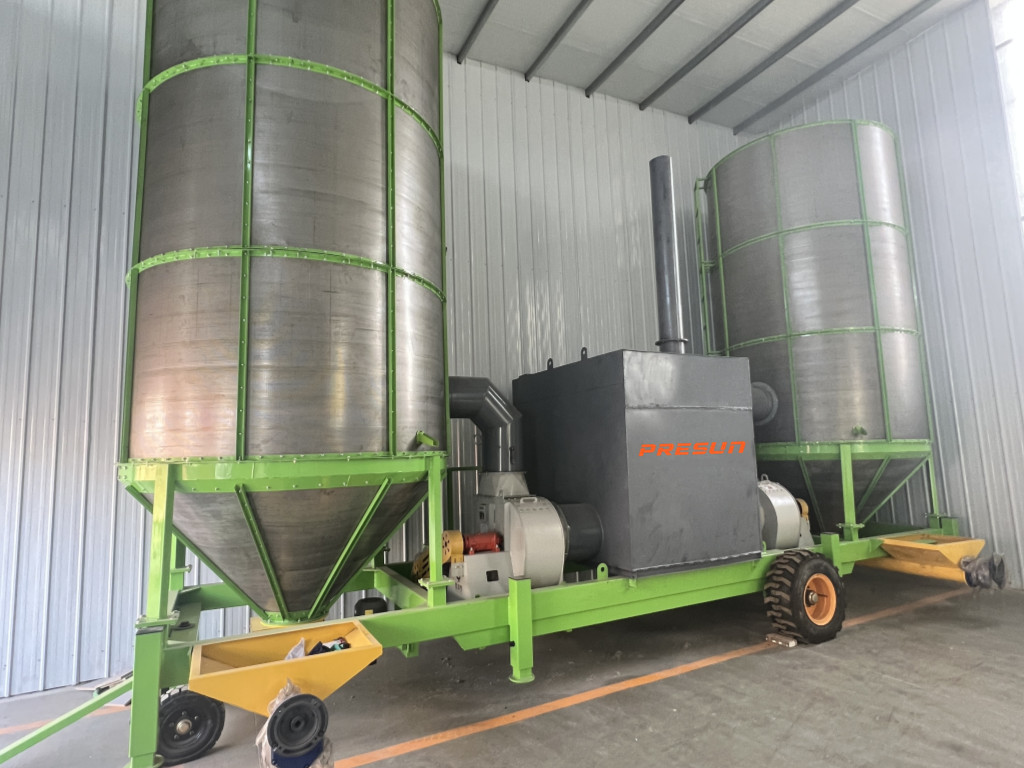

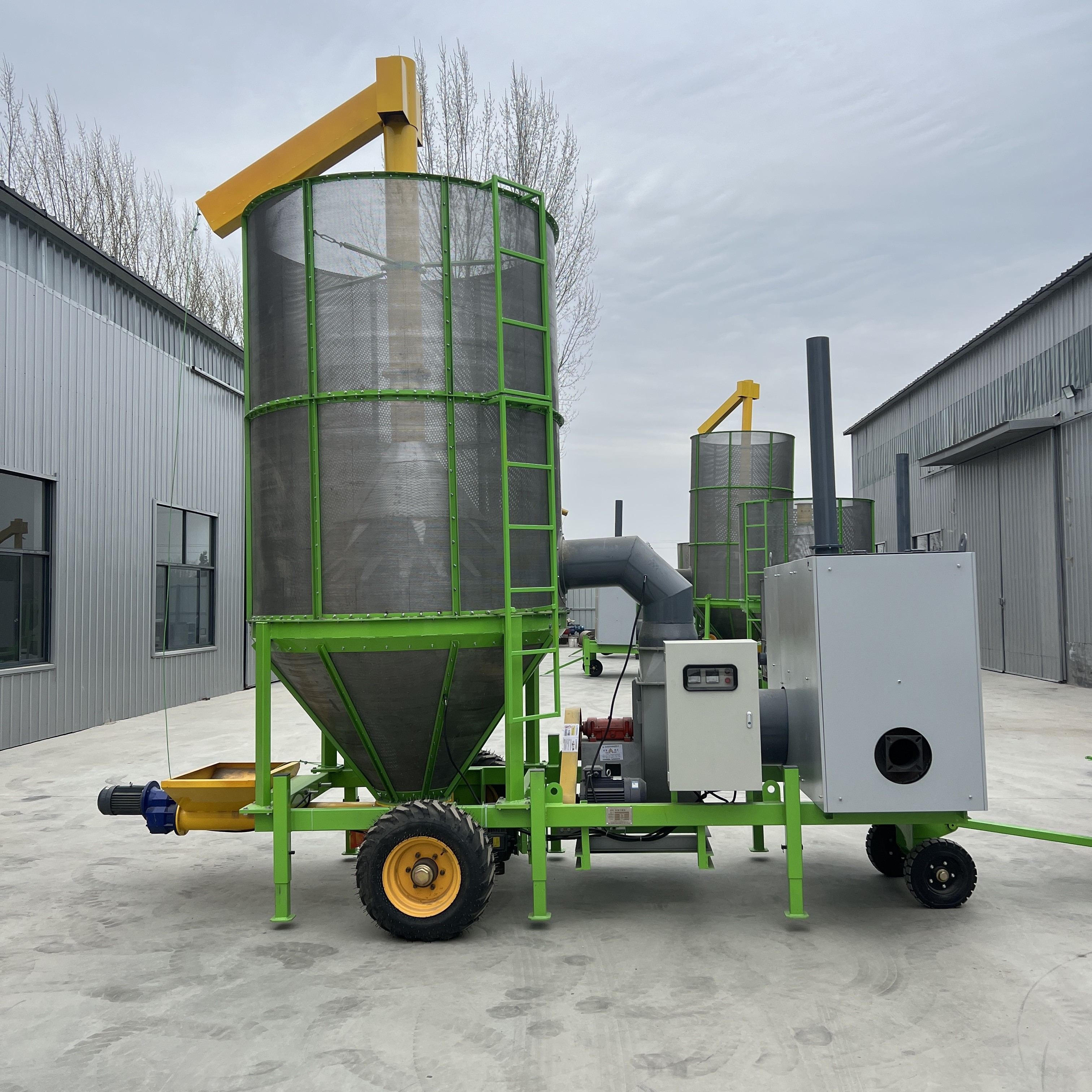

8 Tons Mobile Paddy Dryer Machine Portable Paddy Rice Dryer Machine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 2-10 T/H | Application | Paddy,Corn,Wheat Etc |
|---|---|---|---|
| Fuel | Coal,Diesel,Gas | Guaranty | 1 Year |
| Weight | 1200 Kg | Power | 2.2 Kw |
| Highlight | 10T/H Portable Dryer Machine,10T/H paddy Dryer,3.8m3 Portable Dryer Machine |
||
Product Description
Mobile paddy dryer diesel as fuel mobile rice dryer small mini paddy dryer
Introductions:
1. Small grain dryer with hot air as drying medium, using circulating process, uniform grain heat precipitation, full and good quality after drying.
2. The small grain dryer small investment, low use cost, but the working process of the automatic control, automatic stop, simple operation and effort to meet the needs of farmers and the farm.
3. Small grain dryer equipment has simple structure, small volume, convenient operation, without ancillary equipment, easy to transport and mobile.
4. Small grain dryer with coal, rice husk or straw as fuel, fuel and heat transfer into a clean hot air, drying grain pollution-free.
5. The small grain dryer equipped with automatic on-line temperature measuring device, greatly improve the degree of automation, dry uniformity is good.
6. Convenient cleaning, complete, don't mix, particularly suitable for dry cereal seeds.
Advantage of portable grain dryer :
1: The device has a simple structure, small size, convenient operation, no auxiliary equipment, and is convenient for transportation and movement.
2: Using hot air as the drying medium, adopting the circulating drying process, the grain is heated evenly and fully, and the quality is good after drying.
3: The dryer is made of coal, rice husk or straw, which is converted into clean hot air through combustion and heat exchange, and has no pollution to the dried grain.
4: The investment is small, the use cost is low, the work process can be automatically controlled, the automatic shutdown, the operation is simple and labor-saving, and meet the needs of small and medium-sized farms and farmers.
5: Equipped with automatic online temperature measurement and moisture measuring device, the degree of automation is greatly improved and the drying uniformity is good.
6: Clean and convenient, thorough, will not mix, especially suitable for drying grain seeds.
Technical data
| Model | XSLYD-10 | XSLYD-20 | XSLYD-30 | XSLYD-40 | ||
| Silo Volume | 3.8m³ | 6.5m³ | 9.6m³ | 15.6m³ | ||
| Dry type | Low temperature hot air and grain Mixed flow cycle | |||||
| Hot air temperature | Paddy:45-60℃;Corn:100-130℃;Wheat:90-110℃ | |||||
| Transport height | 2.7m | 2.9m | 2.9m | 2.95m | ||
| Operation height | 3.46m | 3.85m | 4.92m | 6.65m | ||
| Area | 13m2 | 15.5m2 | 16.3m2 | 25m2 | ||
| Oven |
Clean oven Ignition by manual Fuel can be coal,desiel oil,natural gas,etc |
|||||
|
Fuel consumption |
Coal | (Standard conditions)18kg/t | ||||
| Gas | (Standard conditions)7m³/t | |||||
| Diesel oil | (Standard conditions)7.5L/t | |||||
| Total power | 8.5 | 12.9 | 19.4 | 36 | ||
| Daily Production: | 20 t/day | 35 t/day | 50 t/day | 80-100 t/day | ||
| Room temperature | -10-40℃ | |||||
| Feeding time | 8-10 min | 12-16 min | 18-22 min | 22-28 min | ||
| Discharging time | 8-10 min | 10-15 min | 15-20 min | 20-25 min | ||
|
Precipitation rate (%/h) |
Paddy:1.7-2.5;Corn:3.8-6;Wheat:2.8-4.5 | |||||
| Safety Devices | Thermal relay,Error alarm, Times Switch, Overheat alam | |||||
|
The performance of above parameter and Precipitation rate is for reference value,the actual value will be different due to atmospheric temperature,relative humidity,dry species,hot air temperature and moisture content and drying rate.Daily production is calculated by the condition from25% to 14% moisture. |
||||||
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing part would send together with the machine
About Us
Presun Agro Machinery Co.,ltd Presun is a high-tech enterprise dedicated to grain dryer machine. Its product line mainly consists of grain dryers, biomass furnaces and auxiliary equipment.
Since its establishment in 2009, its products have been exported to many countries, such as Algeria, Bangladesh, India, Indonesia, Mynarma, Philippines, Laos, Pakistan, Nigeria, Uganda etc. It has the production capacity to manufacture 500 sets grain dryer machine per year, and can also provide a series of comprehensive solutions such as scheme design, drawing planning, production assembly, and after-sales guidance
"Customer oriented, serving farmers" have always been the company's purpose. Reducing farmers' drying costs and providing the lowest-cost and best-quality grain are our continuous pursuit.
With more than 15 years experience in grain processing machinery and total solution research and development, Presun brand is well recognized worldwide as an international grain processing solution provider, especially for grain drying, biomass furnace, turnkey grain dryer project, etc.
