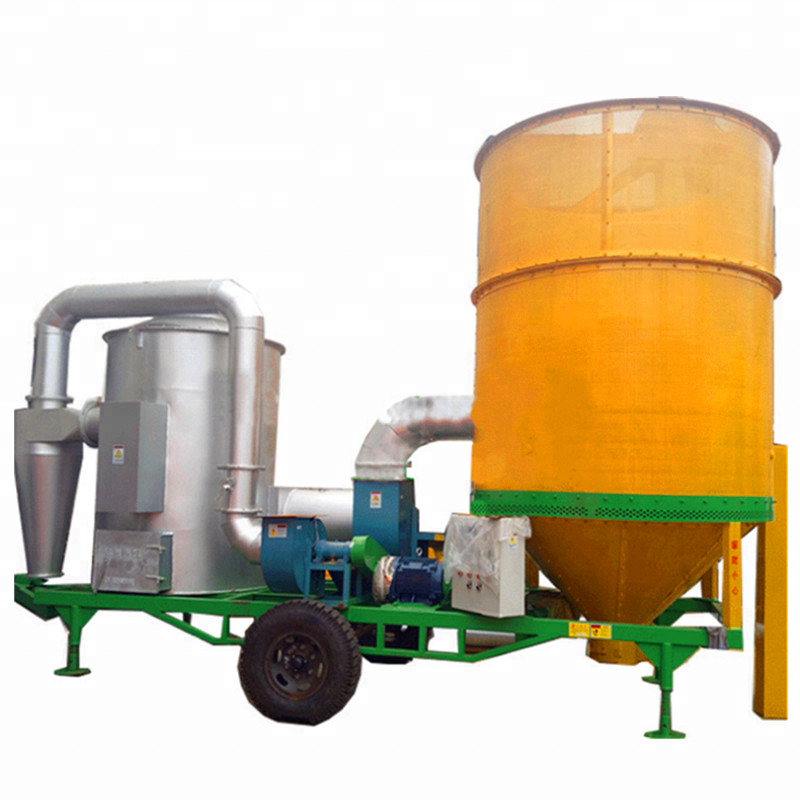

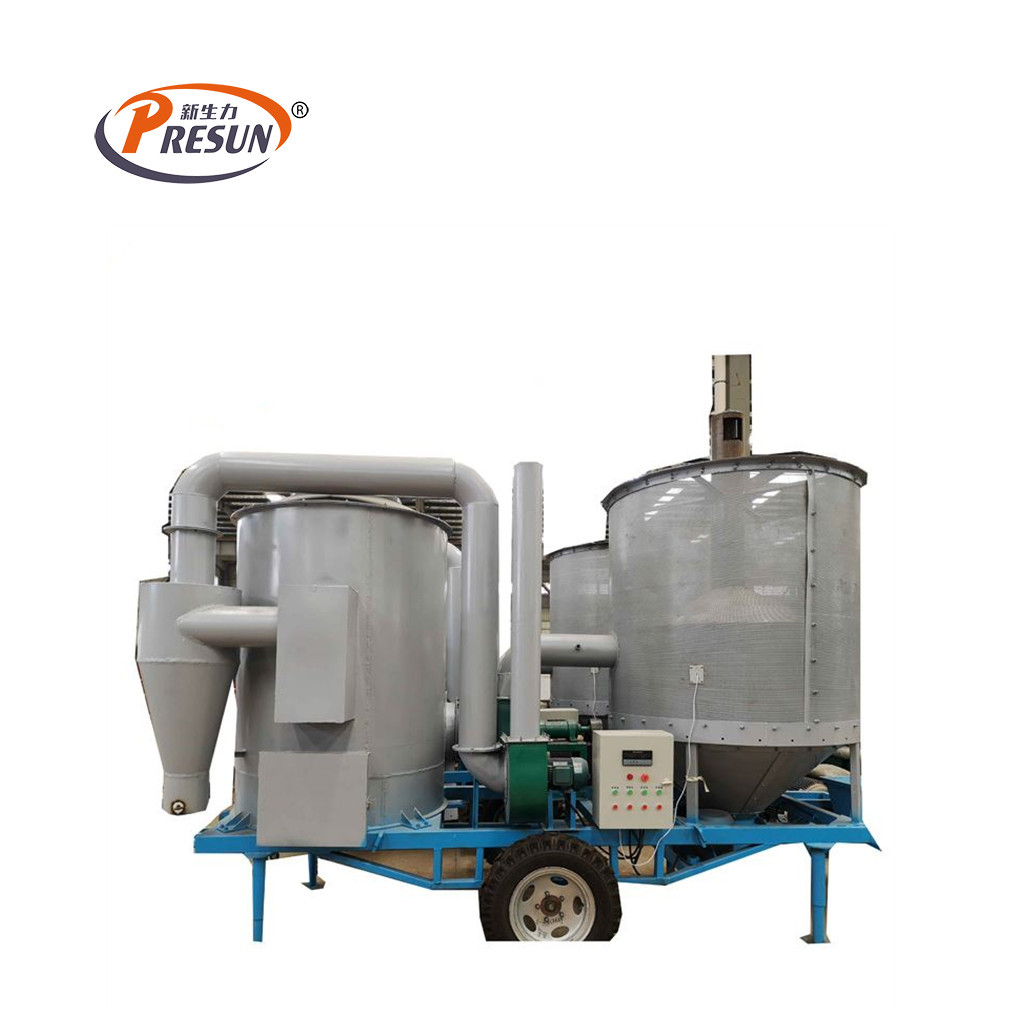

4 Tons Per Batch Silo Volume Mobile Grain Portable Dryer Machine
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Capacity | 2-10 T/H | Application | Paddy,Corn,Wheat Etc |
|---|---|---|---|
| Fuel | Coal,Diesel,Gas | Guaranty | 1 Year |
| Highlight | 20t/day grain dryer machine,15.6m3 grain dryer machine,20t/day mobile grain dryer |
||
Product Description
Small grain dryer mobile grain dryer 5 tons per batch mini grain dryer
The grain dryer is an ideal drying equipment for drying grain and grain. It can be used for one machine. Dry rice, rapeseed, soybean, wheat, corn, peanut and other grains can be dried on the same equipment to meet different grain seasons. Drying, drying of feed grain, commercial grain and seed grain can be carried out to improve the utilization rate and reduce the idle time of equipment. The drying equipment is very suitable for use in food processing plants, lexical processing plants, farms, grain stations, grain farmers, cooperatives, grain depots, grain and oil processing plants and other user groups.
Working principle
Movable grain dryer (mobile grain drying equipment) uses hot air as drying medium and adopts cyclic drying technology. The grain is heated and precipitated uniformly, fully and has good quality after drying. The grain dryer uses coal, firewood, straw or rice husk as fuel, which is converted into clean hot air through combustion and heat transfer. The grain dryer is also equipped with an automatic on-line temperature and humidity measuring device, which greatly improves the degree of automation and ensures the quality of grain after drying.
Advantage of portable grain dryer :
1. This portable grain dryer With low noise centrifugal and overload protection fan, startup mode is slowly, the supply air is uniformly and service life is long.
2. The shell of this portable grain dryer is easily removed and install, so the maintenance is also easily.
The grid exhaust window made of stainless steel, is very durable and strong and easily to clean.
3. This portable grain dryer With the dust remover, the drying environment is clean.
4.The main electronic components of bthis portable grain dryer are installed in convenient maintenance places.
5.The thoughtful ladder and terrace of this portable grain dryer can be for watching,inspecting and maintenance conveniently.
Technical data
| Model | XSLYD-10 | XSLYD-20 | XSLYD-30 | XSLYD-40 | ||
| Silo Volume | 3.8m³ | 6.5m³ | 9.6m³ | 15.6m³ | ||
| Dry type | Low temperature hot air and grain Mixed flow cycle | |||||
| Hot air temperature | Paddy:45-60℃;Corn:100-130℃;Wheat:90-110℃ | |||||
| Transport height | 2.7m | 2.9m | 2.9m | 2.95m | ||
| Operation height | 3.46m | 3.85m | 4.92m | 6.65m | ||
| Area | 13m2 | 15.5m2 | 16.3m2 | 25m2 | ||
| Oven |
Clean oven Ignition by manual Fuel can be coal,desiel oil,natural gas,etc |
|||||
|
Fuel consumption |
Coal | (Standard conditions)18kg/t | ||||
| Gas | (Standard conditions)7m³/t | |||||
| Diesel oil | (Standard conditions)7.5L/t | |||||
| Total power | 8.5 | 12.9 | 19.4 | 36 | ||
| Daily Production: | 20 t/day | 35 t/day | 50 t/day | 80-100 t/day | ||
| Room temperature | -10-40℃ | |||||
| Feeding time | 8-10 min | 12-16 min | 18-22 min | 22-28 min | ||
| Discharging time | 8-10 min | 10-15 min | 15-20 min | 20-25 min | ||
|
Precipitation rate (%/h) |
Paddy:1.7-2.5;Corn:3.8-6;Wheat:2.8-4.5 | |||||
| Safety Devices | Thermal relay,Error alarm, Times Switch, Overheat alam | |||||
|
The performance of above parameter and Precipitation rate is for reference value,the actual value will be different due to atmospheric temperature,relative humidity,dry species,hot air temperature and moisture content and drying rate.Daily production is calculated by the condition from25% to 14% moisture. |
||||||
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing part would send together with the machine
