xProduct Details
| Type | Batch Type | Usage | Grain Drying |
|---|---|---|---|
| Condition | New | Drying Rate | 0.5~1.2% |
| Power | 9.95kw | Dryer Dimension | 1850*4170*10200mm |
| Whole Dimesion | 2500*4320*10200mm | ||
| High Light | paddy rice dryer,paddy grain dryer,15 Tons Paddy Grain Dryer |
||
Product Description

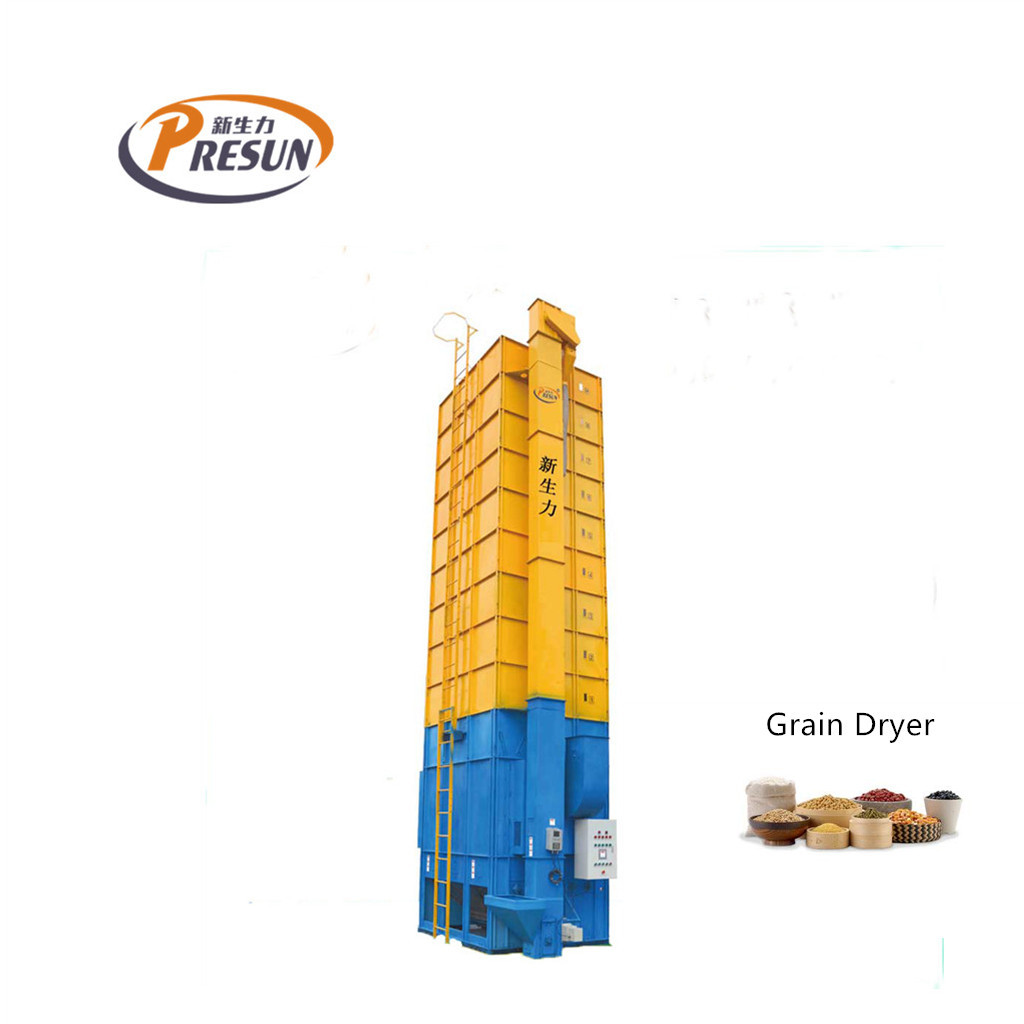

10-15 Tons Raw Paddy Drying Machine Batch Circulating Type Dryer
WORKING PRINCIPLE OF PADDY DRYER
It adopts rotary heating device, it can output enough hot air in a short time and dry the grains which is passing through.
It also adopts digitization control and instrumentation to control drying box’s temperature to avoid appearing discoloring and metamorphic phenomenon.
Drying cabinet is made of metal aluminum plate and silica gel cotton insulation layer to reduce energy consumption effectively.
Cyclotron system can reach the purpose of air circulation, humidification and heating in the drying box
TECHNICAL PARAMETERS
| Model | 5HPX-15 |
| Loading capacity | 15Tons |
| Dimension | 2550*1850*10700mm |
| Drying Type | Low Temperature circulating Type |
| Power For Fan | 5.5KW |
| Drying Rate | 0.6~1.2% |
| Heat Consumption | <20,000 KCalorie |
| Weight | 3,000KG |
| Standard Device | Moisture Meter,Conveyor,Fan |
Furnace Burner Options
| Furnace Type | Yes/No |
| Diesel | Yes |
| Gas | Yes |
| Coal | Yes |
| Biomass Material | Yes(Husk/Wood/Straw/Etc) |
WORKING DIAGRAM
APPLICANTS:
What We Can Offer
1) Whole turnkey project solution
included pre-cleaning machine,elevator,conveyor these essential equipment could also given from ourside
2) Plant design service
supply you all the possibly area required,the instllation diagram and draws for consideration
3) Instllation and commisioning service
professional engineer woud guide you for the assembling and commisioning of the machine
4) Full time online service
24 hours online technique service,ensure to solve the problem immediately
5) Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry for drying season
